The following instructions will detail how to App-V sequence Microsoft Edge Browser, if the sequencing client hasn't been configured read this page.
​
First thing, revert the Hyper-V checkpoint to ensure the sequencing client is clean and the virtual network. is disabled.
​
Download the latest version of Microsoft Edge for x64 systems from here to your Windows 10 host.
​
Power on the Sequencing client, when the display settings prompt, click 'Show Options
![](https://static.wixstatic.com/media/b83e6b_f59fe066890746458d1b861efa51238b~mv2.png/v1/fill/w_402,h_223,al_c,lg_1,q_85,enc_auto/b83e6b_f59fe066890746458d1b861efa51238b~mv2.png)
Select the 'Local Resources' tab and click 'More...'
![](https://static.wixstatic.com/media/b83e6b_b232dfd86b284de29cb3b9d1dfdae50f~mv2.png/v1/fill/w_400,h_316,al_c,q_85,enc_auto/b83e6b_b232dfd86b284de29cb3b9d1dfdae50f~mv2.png)

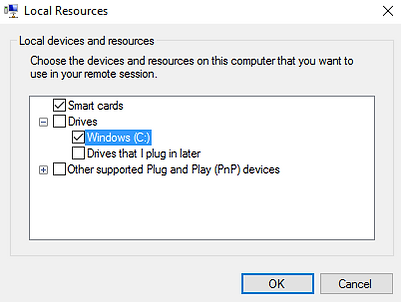

Select 'Windows (C:)' to pass through the host C:\ to the Sequencing client VM.
![](https://static.wixstatic.com/media/b83e6b_29027ebb163949f0a780f5c83e7de9e1~mv2.png/v1/fill/w_402,h_300,al_c,q_85,enc_auto/b83e6b_29027ebb163949f0a780f5c83e7de9e1~mv2.png)
Browse and locate Microsoft Edge Browser and copy to the sequencing client.
![](https://static.wixstatic.com/media/b83e6b_60003683f3c14c2ea34a7f2a49be11c8~mv2.png/v1/fill/w_60,h_18,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_60003683f3c14c2ea34a7f2a49be11c8~mv2.png)
Launch App-V Sequencer and click on 'Create a New Virtual Application Package'
![](https://static.wixstatic.com/media/b83e6b_7698bc5b07a24c8bb1165ecf5523ad2c~mv2.png/v1/fill/w_60,h_30,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_7698bc5b07a24c8bb1165ecf5523ad2c~mv2.png)
Go with the default 'Create Package (default)'
![](https://static.wixstatic.com/media/b83e6b_45e10b7e1db541d09030921e20f2f816~mv2.png/v1/fill/w_60,h_43,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_45e10b7e1db541d09030921e20f2f816~mv2.png)
The sequencer will check to confirm that there are no outstanding issues, such at required reboots
![](https://static.wixstatic.com/media/b83e6b_635ad455432e42a7b7010da3d31938f9~mv2.png/v1/fill/w_60,h_43,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_635ad455432e42a7b7010da3d31938f9~mv2.png)
Again, go with the default 'Standard Application (Default)',
![](https://static.wixstatic.com/media/b83e6b_7139279da8fe491992dc6b0962d12c6f~mv2.png/v1/fill/w_60,h_43,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_7139279da8fe491992dc6b0962d12c6f~mv2.png)
Select 'Perform a custom installation'
![](https://static.wixstatic.com/media/b83e6b_50368f1348b44a678ea56e6495cc2759~mv2.png/v1/fill/w_59,h_43,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_50368f1348b44a678ea56e6495cc2759~mv2.png)

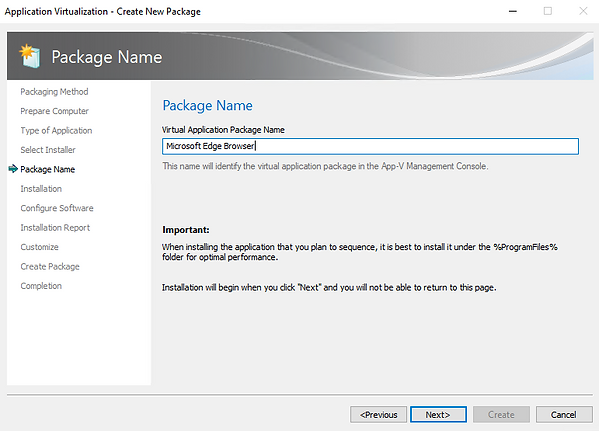

Provide the Package Name with something meaningful.
![](https://static.wixstatic.com/media/b83e6b_323e22bffac64ffca735809981a9d21c~mv2.png/v1/fill/w_59,h_43,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_323e22bffac64ffca735809981a9d21c~mv2.png)
Click on 'Run...' to start the installation of MS Edge.
![](https://static.wixstatic.com/media/b83e6b_44d6a96d4ae041b59484894065bc8477~mv2.png/v1/fill/w_60,h_43,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_44d6a96d4ae041b59484894065bc8477~mv2.png)
Browse to the installation media and open
![](https://static.wixstatic.com/media/b83e6b_a227be2220214472b291b370c754f9b6~mv2.png/v1/fill/w_60,h_42,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_a227be2220214472b291b370c754f9b6~mv2.png)
![](https://static.wixstatic.com/media/b83e6b_42dd9910a3fd41f8b8f998b30e9f6ccf~mv2.png/v1/fill/w_97,h_37,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_42dd9910a3fd41f8b8f998b30e9f6ccf~mv2.png)
When the installation completes, check 'I am finished installing'
![](https://static.wixstatic.com/media/b83e6b_8a0ae7afccb94021b54909b5ce6decc8~mv2.png/v1/fill/w_60,h_43,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_8a0ae7afccb94021b54909b5ce6decc8~mv2.png)
The sequencer will capture the changes, this make take sometime depending on the application.
![](https://static.wixstatic.com/media/b83e6b_39eed6de6881488083c34287dcd2e0d8~mv2.png/v1/fill/w_60,h_43,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_39eed6de6881488083c34287dcd2e0d8~mv2.png)
Select 'Microsoft Edge' and 'Run Selected'.
MS Edge will open, accept EULA and run through the startup configuration.
​
Make any desired changes to MS Edge and close
​
![](https://static.wixstatic.com/media/b83e6b_cef90fe4ab834d2397934d25693bba35~mv2.png/v1/fill/w_60,h_43,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_cef90fe4ab834d2397934d25693bba35~mv2.png)
Click Next
![](https://static.wixstatic.com/media/b83e6b_914d532b38264eac9c017cb5553d31ac~mv2.png/v1/fill/w_60,h_43,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_914d532b38264eac9c017cb5553d31ac~mv2.png)
Click past the 'Installation Report'
![](https://static.wixstatic.com/media/b83e6b_2f5ab70362ae49738036c3aebf9a4ab8~mv2.png/v1/fill/w_60,h_43,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_2f5ab70362ae49738036c3aebf9a4ab8~mv2.png)
Select 'Customize'
![](https://static.wixstatic.com/media/b83e6b_b84ca0f2c8f1420eae2a46121ec6a031~mv2.png/v1/fill/w_60,h_43,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_b84ca0f2c8f1420eae2a46121ec6a031~mv2.png)
Select 'Allow the package to run only on the following operating systems' and select 'Winodws 10 64-bit'
![](https://static.wixstatic.com/media/b83e6b_c6d08587fb1e4d0d9c1e0f63016aea8c~mv2.png/v1/fill/w_60,h_43,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_c6d08587fb1e4d0d9c1e0f63016aea8c~mv2.png)
Select 'Continue to modify package without saving the package editor'
![](https://static.wixstatic.com/media/b83e6b_89ffac0f589941cc8377215309fb3e19~mv2.png/v1/fill/w_60,h_43,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_89ffac0f589941cc8377215309fb3e19~mv2.png)
MS Edge generates 'DCOM subsystem detected' and 'Files excluded package'
![](https://static.wixstatic.com/media/b83e6b_f40f70f9d6344ff8905a5a5e0c06ec7f~mv2.png/v1/fill/w_60,h_43,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_f40f70f9d6344ff8905a5a5e0c06ec7f~mv2.png)
Click on each of the warnings for further information, these are to be expected and on the whole can be ignored for now. Testing will highlight and issues.
![](https://static.wixstatic.com/media/b83e6b_1285b30cfca94a6e8db9877e52bd3e89~mv2.png/v1/fill/w_124,h_79,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_1285b30cfca94a6e8db9877e52bd3e89~mv2.png)
To make sure the sequenced app-v package the following changes are required.
​
in the description of the 'Properties' tab add the version and any other support comments.
​
![](https://static.wixstatic.com/media/b83e6b_cd0444bee54c4fde939829f2f3604e50~mv2.png/v1/fill/w_60,h_33,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_cd0444bee54c4fde939829f2f3604e50~mv2.png)
The DCOM error was related to the MS Edge services for updating itself. certainly dont want that.
​
Change the 3 services 'Start' to 4 (disabled), in the 'Virtual Registry' tab.
​
![](https://static.wixstatic.com/media/b83e6b_5828467a1d304515aabf8df1088e7976~mv2.png/v1/fill/w_60,h_22,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_5828467a1d304515aabf8df1088e7976~mv2.png)
Without the following folder deletion MS Edge will not work, it fails to load during testing with error '0xc0000142'. This is not due to 8.3 name creations being disabled.
​
Delete both 'System' and 'Windows' directories
​
![](https://static.wixstatic.com/media/b83e6b_73177c3620524cf48dadbfd3e9813a64~mv2.png/v1/fill/w_60,h_32,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_73177c3620524cf48dadbfd3e9813a64~mv2.png)
This what the folder structure will look like after the tidy up.
![](https://static.wixstatic.com/media/b83e6b_af88b19509a148199ebaf1e606c1c1ea~mv2.png/v1/fill/w_60,h_29,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_af88b19509a148199ebaf1e606c1c1ea~mv2.png)
With those changes made, save the package.
![](https://static.wixstatic.com/media/b83e6b_b3de8871c248427eb6280c232891d333~mv2.png/v1/fill/w_81,h_62,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_b3de8871c248427eb6280c232891d333~mv2.png)
Now for a quick test of the sequences package. From Windows 10 1607 App-V was integrated and requires enabling.
​
Open elevated Powershell window and run the following, no reboots required
Enable-AppV
To publish the sequenced package and ultimately test its functionality, run the following command
Add-AppvClientPackage -Path 'C:\Packages\Edge\Microsoft Edge Browser.appv' -DynamicDeploymentConfiguration 'C:\Packages\Edge\Microsoft Edge Browser_DeploymentConfig.xml' |
Publish-AppvClientPackage -Global
The package will publish and mount itself in C:\ProgramData\App-V. This may take a while and some of the files may appear offline until its fully published.
![](https://static.wixstatic.com/media/b83e6b_8aa09aa1415546fa92b3cd14855a8911~mv2.png/v1/fill/w_59,h_18,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_8aa09aa1415546fa92b3cd14855a8911~mv2.png)
Go to the Start Menu and launch 'Microsoft Edge'. Not forgetting that Edge was previously installed during the sequencing. Check the shortcut to make sure its the correct version.
​
Or run 'Appwiz.cpl' and remove Microsoft Edge
![](https://static.wixstatic.com/media/b83e6b_7295a7e4b9134bb8999d6d481f4306c7~mv2.png/v1/crop/x_6,y_0,w_640,h_270/fill/w_60,h_25,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/b83e6b_7295a7e4b9134bb8999d6d481f4306c7~mv2.png)
Now copy the sequenced package to the host and up to ConfigMgr for deployment. This will be covered next
